Main Technical Parameters
| Dimension (mm) | 3000*2050*1900 | Weight (kg) | 3200 | Certification | CE ISO | ||
| Main Power (kw) | 12 | Input Voltage | 380/220V | Power Source | Hydraulic | ||
| Output Force (kn) | 300 | Punching Speed (hpm) | 60 | Control Axis | 3 | ||
| Max Material Size (mm) | 6000*125*12 | Max Punching Dies | 32mm | ||||
|
Location Speed (X axis) |
48m/min | Stroke of Punching Cylinder | 45mm | Positioning Repeatability | ±0.20mm/m | ||
|
Max Stroke (mm) |
X Axis Y Axis Z Axis |
1000 530 350 |
Amount of Dies |
Punching Shearing
|
4/5 1/1
|
||
Configuration
| Control Parts | Transmission Parts | ||

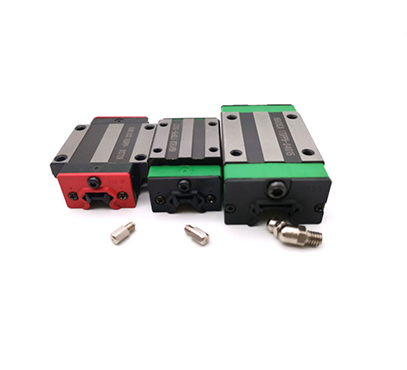

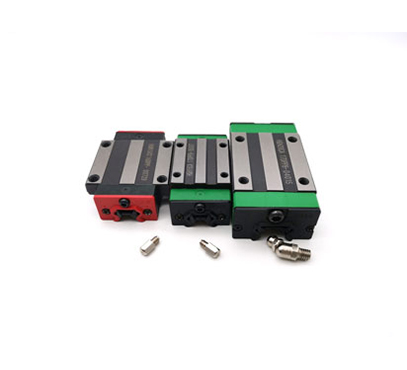

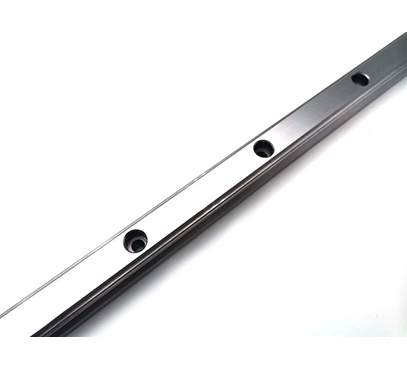

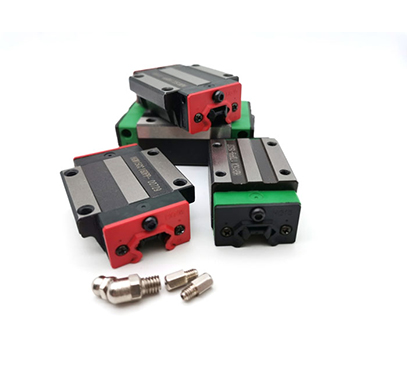

| PLC | OMRON | Precision linear Guide | Taiwan HIWIN |
| Sensors | Schneider electric | Precision the ball screw (4th series) | Taiwan HIWIN |
| Control Button | OMRON | Ball screw support beaning | Japanese NSK |
| Touch Screen | OMRON | Hydraulic Parts | |
| Computer | Lenovo | High-pressure Electromagnetic Valve | Italy |
| AC Contactor | ABB | High pressure tubing | Rivaflex |
| Circuit Breaker | ABB | High pressure pump | AIbert |
| Servo Motor | YASKAWA | The control software and 3D support software | GJ3D (3D support software designed all by our company) |
| Servo Driver | YASKAWA | ||
